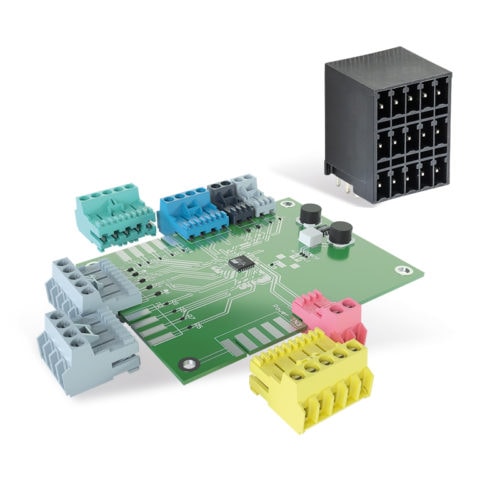

PCB Terminals & CONNECTORS

For the latest heating systems, state-of-the-art compressors, or safety technology in mechanical engineering, the wiecon® printed circuit board (PCB) terminals offer varied, reliable and service-friendly solutions.

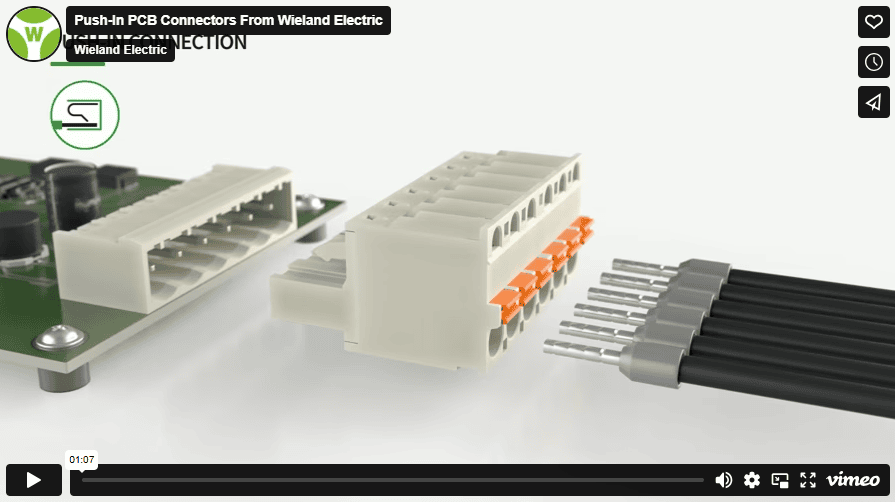

Play

BENEFITS

  • Tool-free, direct plug-in technology
  • High-temperature rated pin headers suitable for THR processes
  • Side by side stacking to suit any pin count
  • Process optimized packaging: tape-on-reel, tray, or box packaging options
  • Customer-specific color and printing options for quick identification and maintenance
  • Safe for domestic and industrial purposes – ROHS-compliant, no flame, and other applicable standards

SEEING IS BELIEVING. ORDER ONE OF OUR PLUGGABLE CONNECTOR SAMPLE KITS.

Sample Kits
Product Image

FEATURED PRODUCTS

PCB CONNECTORS

Make high-tech devices service-friendly with this powerful and compact line of printed circuit board connectors for cross-sections up to 4 mm2.

Special colors and printing, along with unique molding and coding tabs prevent mistakes and further enhance the ease of service and safety of your devices.

Download PDF Catalog

TECHNICAL DATA (click to expand)

Cable cross sections 0,14 mm2 to 4 mm2
For currents up to 12 A
For voltage up to 1000 V
Connection technology Screw, tension spring, push-in connection
Spacings 2,5 mm to 7,62 mm
Can be arranged in a grid Yes
Can be coded Yes
No Flame varients available Screw, tension spring, push-in connection


PCB TERMINALS

For luminaires and other devices that have tight spaces, the wiecon® PCB terminals are the most simple and reliable solution. They have only one component instead of two and can be combined and arranged in a grid to fit any application.

Download PDF Catalog

TECHNICAL DATA (click to expand)

Cable cross-sections from 0,14 mm2 to 16 mm2
For currents up to 76 A
For voltage up to 1000 V
Connection technology Screw, tension spring, or push-in
Spacings 2,5 mm to 10,16 mm
Can be arranged in a grid Yes
No Flame varients available Yes
